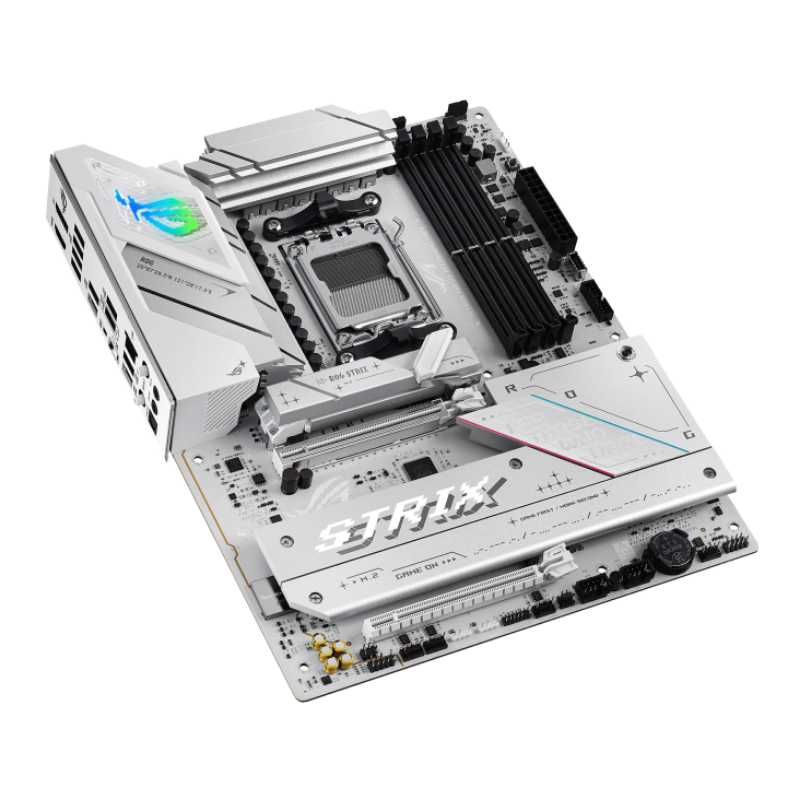

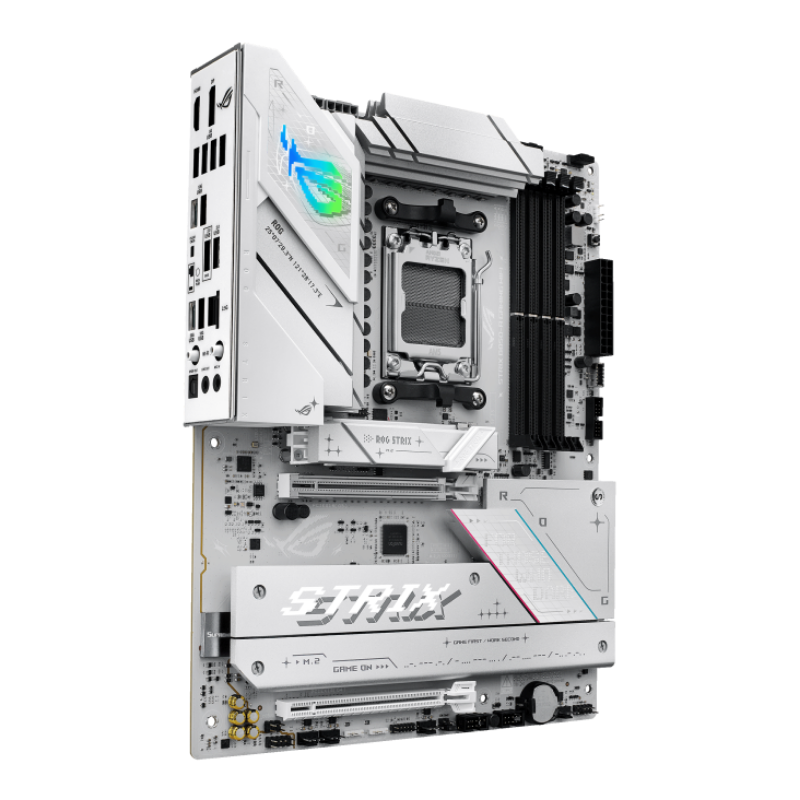

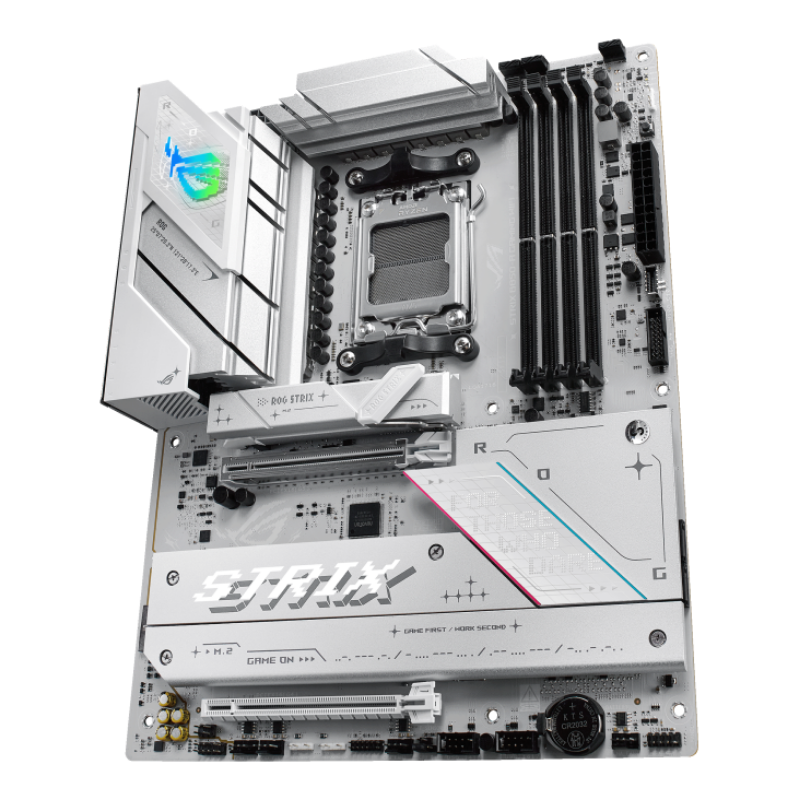

The ASUS ROG Strix B850-A Gaming WiFi is a high-performance ATX motherboard designed for AMD's AM5 platform, supporting Ryzen 7000, 8000, and 9000 series processors. It features a robust 14+2+2 power stage design, ensuring stable power delivery for demanding tasks. The motherboard supports up to 256GB of DDR5 memory, with speeds exceeding 8000MT/s when overclocked, and is compatible with both ECC and non-ECC unbuffered DIMMs. For storage, it offers four M.2 slots and one PCIe 5.0 x16 SafeSlot, providing ample space for high-speed SSDs. Connectivity options include WiFi 7 with ASUS Q-Antenna, 2.5Gb Ethernet, and multiple USB ports, including USB 20Gbps Type-C. Additional features like ASUS AI Advisor, AI Networking II, and Aura Sync RGB lighting enhance the overall user experience.
| Feature |
Specification |
|
Socket
|
AMD AM5
|
|
Chipset
|
AMD B850
|
|
Form Factor
|
ATX
|
|
Memory
|
4 x DIMM slots Supports up to 256GB DDR5 Overclocking support up to 8000+ MT/s ECC and non-ECC, unbuffered DIMM support Dual-channel architecture ASUS Enhanced Memory Profile (AEMP) support
|
|
Expansion Slots:
|
1 x PCIe 5.0 x16 SafeSlot (CPU) 1 x PCIe 4.0 x16 Slot (x4) (Chipset)
|
|
Storage
|
4 x M.2 slots Multiple SATA ports
|
|
Networking
|
WiFi 7 with ASUS Q-Antenna 2.5Gb Ethernet
|
|
USB Ports:
|
USB 20Gbps Type-C USB 10Gbps Type-C
|
|
Additional Features:
|
ASUS AI Advisor AI Networking II Aura Sync RGB lighting
|
