CPU
|
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
|
|
Chipset
|
AMD X870E
|
|
Memory
|
4 x DIMM slots, max.256GB, DDR5 Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 8600+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) Supports DIMM Fit and DIMM Fit Pro NitroPath DRAM Technology ASUS Enhanced Memory Profile (AEMP)
|
|
Graphics
|
1 x HDMI™ port* 2 x USB4® (40Gbps) ports support USB Type-C® display outputs** Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. VGA resolution support depends on processors' or graphic cards' resolution.
|
|
Expansion Slots
|
AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x4/x4 modes**) **When M.2_2 is enabled, PCIEX16_1 will run x8 mode, and M.2_3 will run x4. AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors* 1 x PCIe 4.0 x16 slots with Q-Release Slim (Total bandwidth for x8) AMD Ryzen™ 8500 & 8300 Series Desktop Processors* 1 x PCIe 4.0 x16 slot with Q-Release Slim (Total bandwidth for x4) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported AMD X870E Chipset 1 x PCIe 4.0 x4 slot
|
|
Storage
|
Storage Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) M.2_3 slot (Key M), type 2242/2260/2280 (Not supports) AMD X870E Chipset M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
|
|
RAID Support
|
AMD RAIDXpert2 Technology* Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10
|
|
Ethernet
|
Ethernet 1 x Intel® 2.5Gb Ethernet 1 x Realtek 5Gb Ethernet ASUS LANGuard
|
|
Wireless & Bluetooth
|
Wireless & Bluetooth Wi-Fi 7 (MediaTek MT7927) 2x2 Wi-Fi 7* (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 320MHz bandwidth Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
|
|
USB
|
USB Rear USB (Total 10 ports) 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®) Front USB (Total 10 ports) 2 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A
|
|
Audio
|
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - ESS® ES9219 QUAD DAC - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors
|
|
Back Panel I/O Ports
|
2 x USB4® (40Gbps) ports (2 x USB Type-C®) 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®) 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
|
|
Internal I/O Connectors
|
Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x Graphics card high power slot 1 x 12V-2X6 Auxiliary power connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 20Gbps connectors (support USB Type-C® ) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Alteration PCIe mode switch 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
|
|
Special Features
|

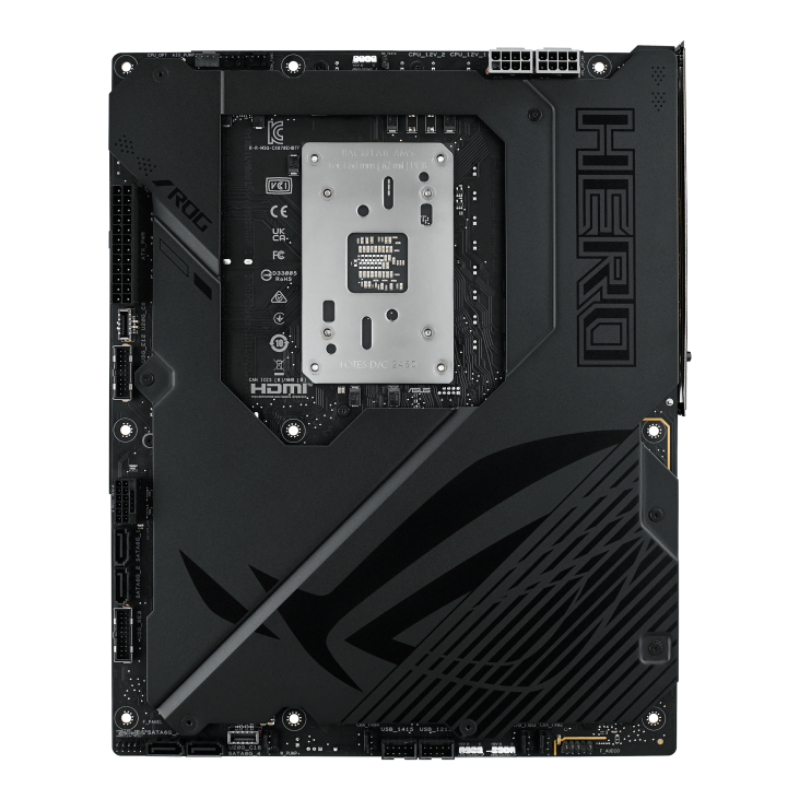

Special Features Extreme OC Kit - FlexKey button - Start button Extreme Engine Digi+ - 10K Black metallic capacitors - MicroFine alloy choke ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Connector - Q-Dashboard - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design - Metal backplate ASUS EZ DIY - Backplate - BIOS FlashBack™ button - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen2 header(s)
|
|
BIOS
|
256Mb Flash ROM, UEFI AMI BIOS
|
|
Accessories
|
Accessories Cables 1 x ARGB RGB extension cable 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 2 x M.2 Q-Latch package 3 x M.2 Q-Slide package 5 x M.2 rubber package 1 x ROG stickers 1 x ROG thank you card 1 x ROG Bottle Opener Installation Media 1 x USB drive with utilities and drivers Documentation 1 x Quick start guide
|
|
Form Factor
|
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
